Mid-Weight Sliding Doors

A medium-size door suitable for a variety of fronts such as aluminum and order-made.
Supports everything from large-scale commercial facilities to building entrances.

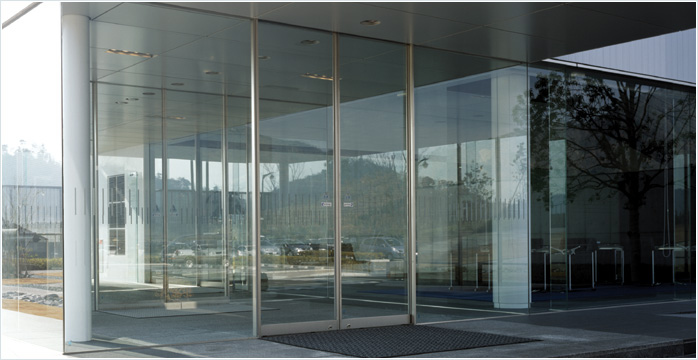

  • Mid-Weight Sliding Door

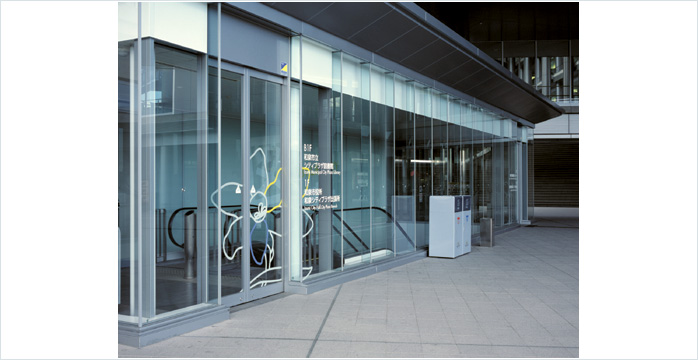

  • Mid-Weight Sliding Door

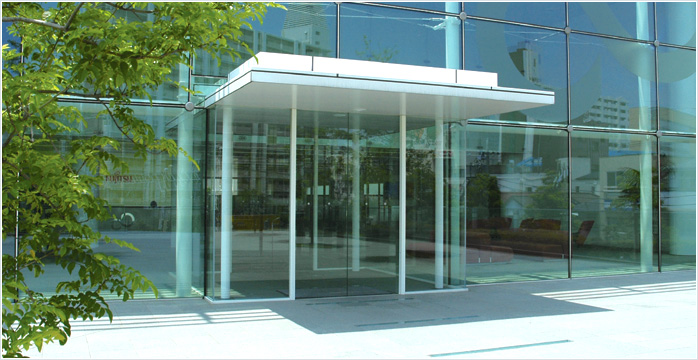

  • Mid-Weight Sliding Door

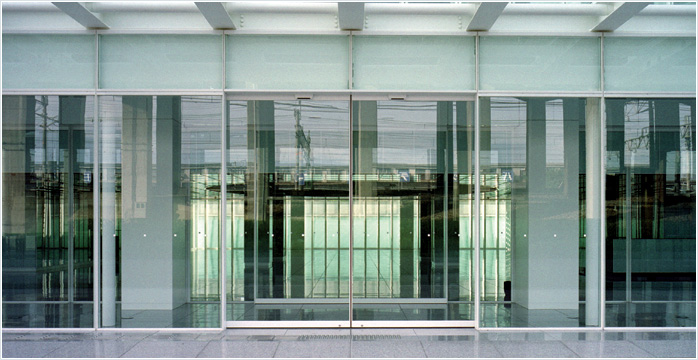

  • Mid-Weight Sliding Door

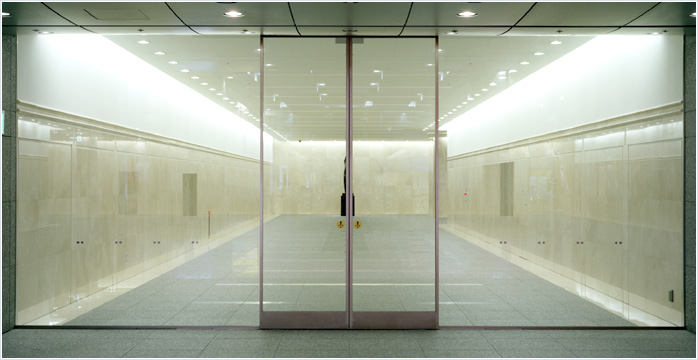

  • Mid-Weight Sliding Door

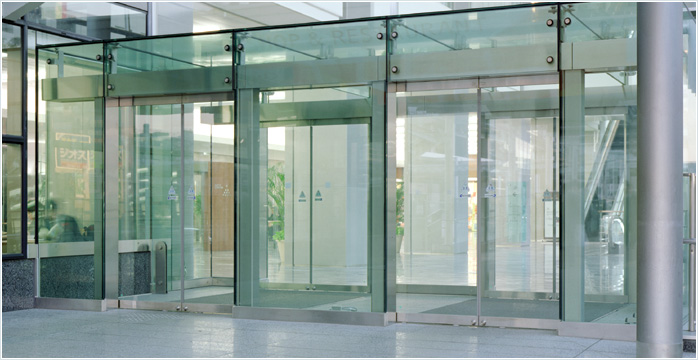

  • Mid-Weight Sliding Door

Application

Recommended

Engine employing a DC brushless motor excelling in power and low noise SOV-100KLCM



SOV-100KLCM



Configuration M3/D3/H1 Plate Set / Separate
Style Single Slide Dual Slide
Adapted Door Mass 100kg~1
(Standard RS Hanger)
50kg~2
Door Stroke 450 - 1,500mm
Travel Time 100 - 500mm/s
Open Timer 0.3 - 9s
Motor Type DC Brushless Motor
Transmission System V Belt / Timing Belt
Controller YCB-DCR
Operating Temp./Humidity -10 - 50 <75% (no condensation)
Power Requirements AC100V }10 5A 50/60Hz
Power Consumption Approx. 117Wh / 1000 open/close cycles


iDoor Strokej450 - 1,500mm

Medium-size door engine suitable for a variety of
fronts from aluminum to order-made

Engine employing a DC brushless motor excelling in power and low noise

SOV-160KLDM

SOV-160KLCM

Configuration M3/D3/H1 Plate Set / Separate M3/D3/H1 Plate Set / Separate
Style Single Slide Dual Slide Single Slide Dual Slide
Adapted Door Mass 150kg~1
(Large RS Hanger)
75kg~2
(M3 Hanger)
150kg~1
(Large RS Hanger)
75kg~2
(M3 Hanger)
Door Stroke 650 - 1,500mm 650 - 1,500mm
Travel Time 100 - 450mm/s 100 - 450mm/s
Open Timer 0.3 - 9s 0.3 - 9s
Motor Type DC Brushed Motor DC Brushless Motor
Transmission System V Belt / Timing Belt / Chain

V Belt / Timing Belt

Controller YCB-DCU YCB-DCR
Operating Temp./Humidity -20 – 50   <75% (no condensation)

-20 – 50   <75% (no condensation)

Power Requirements AC100V }10 5A 50/60Hz AC100V }10 5A 50/60Hz
Power Consumption Approx. 100Wh / 1000 open/close cycles

Approx. 97Wh / 1000 open/close cycles



iDoor Strokej650 - 1,500mm
iDoor Strokej650 - 1,500mm

Mid-Weight Sliding Doors Download Schematics

  • SOV-160KLDM (embedded in 100mm aluminum front fitting)
  • SOV-160KLDM (direct mount fitting)
  • SOV-160KLDM (stainless order-made sash fitting / double slide single / dual)
  • SOV-160KLDM (Slim Sanergy Door / stainless steel order-made sash fitting)

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.

LDM series high-end model combining high power
with quiet operation. Supports a wide range of
fronts from aluminum to building types

Mid-weight door engine employing a DC brushless motor excelling in power and low noise



SOV-200KLDM

SOV-200KLCM

Configuration M3/D3/H1 Plate Set / Separate

M3/D3/H1 Plate Set / Separate

Style Single Slide Dual Slide Single Slide Dual Slide
Adapted Door Mass 150kg~1
(Large RS Hanger)
100kg~2
(Standard RS Hanger)
150kg~1
(Large RS Hanger)
100kg~2
(Standard RS Hanger)
Door Stroke 650 - 2,000mm 650 - 2,000mm
Travel Time 100 - 450mm/s 100 - 450mm/s
Open Timer 0.3 - 9s 0.3 - 9s
Motor Type DC Brushed Motor DC Brushless Motor
Transmission System V Belt / Timing Belt / Chain V Belt / Timing Belt
Controller YCB-DCU YCB-DCR
Operating Temp./Humidity -20 - 50   <75% (no condensation) -20 - 50 <75% (no condensation)
Power Requirements AC100V }10 5A 50/60Hz AC100V }10 5A 50/60Hz
Power Consumption Approx. 130Wh / 1000 open/close cycles

Approx. 112Wh / 1000 open/close cycles



iDoor Strokej650 - 2,000mm
iDoor Strokej650 - 2,000mm

Mid-Weight Sliding Doors Download Schematics

  • SOV-200KLDM (embedded in 100mm aluminum front fitting)
  • SOV-200KLDM (direct mount fitting)
  • SOV-200KLDM (Slim Sanergy Door / stainless steel order-made sash fitting)

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.

An engine for separated order-made sash doors. Designed in accordance with our High Power Toughness concept for DC series mid-weight doors

Mid-weight door engine employing a DC brushless motor excelling in power and low noise

SOV-200KDC

SOV-200KDCN

Configuration Separate Separate
Style Single Slide Dual Slide Single Slide Dual Slide
Adapted Door Mass 150kg~1
(Large RS Hanger)
100kg~2
(Standard RS Hanger)
150kg~1
(Large RS Hanger)
100kg~2
(Standard RS Hanger)
Door Stroke 650 - 2,000mm 650 - 2,000mm
Travel Time 100 - 400mm/s 100 - 400mm/s
Open Timer 0.3 - 9s 0.3 - 9s
Motor Type DC Brushed Motor DC Brushless Motor
Transmission System V Belt / Timing Belt / Chain V Belt / Timing Belt / Chain
Controller YCB-DCU YCB-DCR
Operating Temp./Humidity -20 - 50 <75% (no condensation) -10 - 50 <75% (no condensation)
Power Requirements AC100V }10 5A 50/60Hz AC100V }10 5A 50/60Hz
Power Consumption Approx. 110Wh / 1000 open/close cycles

Approx. 113Wh / 1000 open/close cycles



iDoor Strokej650 - 2,000mm
iDoor Strokej650 - 2,000mm

* SOT-200KNB also available.

Mid-Weight Sliding Doors Download Schematics

  • SOV-200KDC

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.
