Heavyweight Sliding Doors

Automatic doors suitable for large-scale doors used in various industrial facilities.

These doors are designed in accordance with our High Power and Toughness concept.

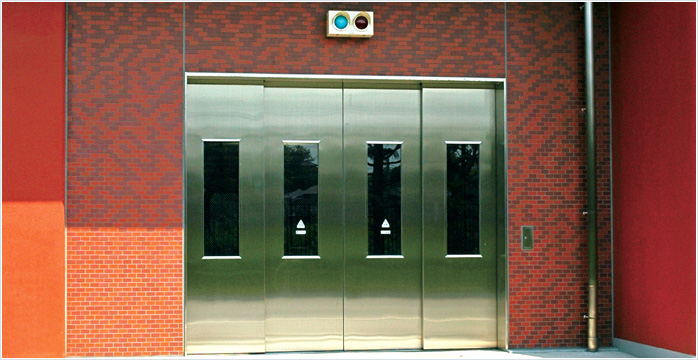

  • Heavyweight Sliding Door

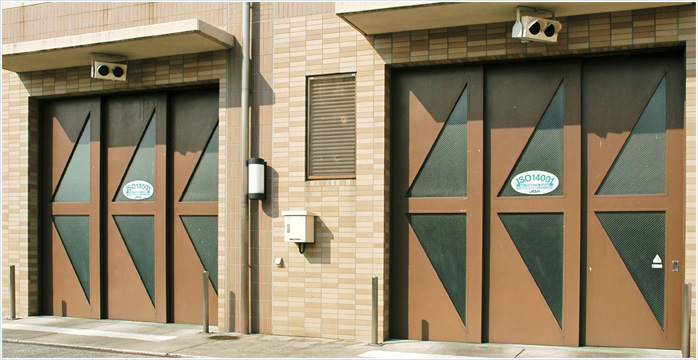

  • Heavyweight Sliding Door

Application

Recommended

Heavy door engine supporting a total door mass up to 300kg

Heavy door engine supporting a total door mass up to 400kg

SOV-300KDC

SOV-400KDC

Configuration Separate Separate
Style Single Slide Dual Slide Single Slide Dual Slide
Adapted Door Mass 300kg~1
(Heavy Hanger)
150kg~2
(Large RS Hanger)
400kg~1
(Ultra-Heavy Hanger)
200kg~2
(Heavy Hanger)
Door Stroke 850 - 3,000mm 850 - 3,000mm
Travel Time 100 - 350mm/s 100 - 350mm/s
Open Timer 0.3 - 9s 0.3 - 9s
Motor Type DC Brushed Motor DC Brushed Motor
Transmission System V Belt / Chain V Belt / Chain
Controller YCB-DCH YCB-DCH
Operating Temp./Humidity -20 - 50 <75% (no condensation) -20 - 50 <75% (no condensation)
Power Requirements AC100V }10 5A 50/60Hz AC100V }10 5A 50/60Hz
Power Consumption Approx. 130Wh / 1000 open/close cycles Approx. 130Wh / 1000 open/close cycles


iDoor Strokej850 - 3,000mm
iDoor Strokej850 - 3,000mm

Heavyweight Sliding Doors Download Schematics

  • SOV-300KDC
  • SOV-400KDC

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.

Heavy door engine supporting a total door mass
up to 600kg

Heavy door engine supporting a total door mass up to 300kg

SOV-600KDC

SOV-300KDCN

Configuration Separate Separate
Style Single Slide Dual Slide Single Slide Dual Slide
Adapted Door Mass 600kg~1


300kg~2
(Heavy Hanger)
300kg~1
(Heavy Hanger)
150kg~2
(Large RS Hanger)
Door Stroke 850 - 3,000mm 850 - 3,000mm
Travel Time 100 - 200mm/s 100 - 350mm/s
Open Timer 0.3 - 9s 0.3 - 9s
Motor Type DC Brushed Motor DC Brushless Motor
Transmission System V Belt / Chain V Belt / Chain Drive
Controller YCB-DCH YCB-DRH
Operating Temp./Humidity -20 - 50 <75% (no condensation) -10 - 50 <75% (no condensation)
Power Requirements AC100V }10 5A 50/60Hz AC100V }10 5A 50/60Hz
Power Consumption Approx. 110Wh / 1000 open/close cycles

Approx. 168Wh / 1000 open/close cycles



iDoor Strokej850 - 3,000mm
iDoor Strokej850 - 3,000mm

Heavyweight Sliding Doors Download Schematics

  • SOV-600KDC

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.

Heavy door engine supporting a total door mass
up to 400kg

Heavy door engine supporting a total door mass up to 600kg

SOV-400KDCN

SOV-600KDCN

Configuration Separate Separate
Style Single Slide Dual Slide Single Slide Dual Slide
Adapted Door Mass 400kg~1
(Ultra-Heavy Hanger)
200kg~2
(Heavy Hanger)
600kg~1


300kg~2
(Heavy Hanger) j
Door Stroke 850 - 3,000mm 850 - 3,000mm
Travel Time 100 - 350mm/s 100 - 200mm/s
Open Timer 0.3 - 9s 0.3 - 9s
Motor Type DC Brushless Motor DC Brushless Motor
Transmission System V Belt / Chain Drive V Belt / Chain Drive
Controller YCB-DRH YCB-DRH
Operating Temp./Humidity -10 - 50 <75% (no condensation) -10 - 50 <75% (no condensation)
Power Requirements AC100V }10 5A 50/60Hz AC100V }10 5A 50/60Hz
Power Consumption Approx. 162Wh / 1000 open/close cycles

Approx. 167Wh / 1000 open/close cycles



iDoor Strokej850 - 3,000mm
iDoor Strokej850 - 3,000mm
