Swing Door

Compact swing-type automatic doors that attach to a transom.

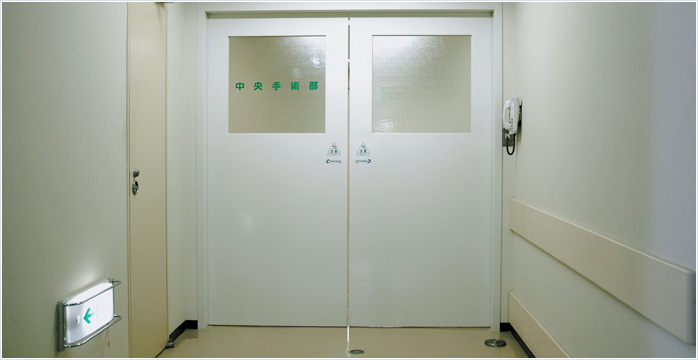

  • Swing Door Fully Closed(Exterior)

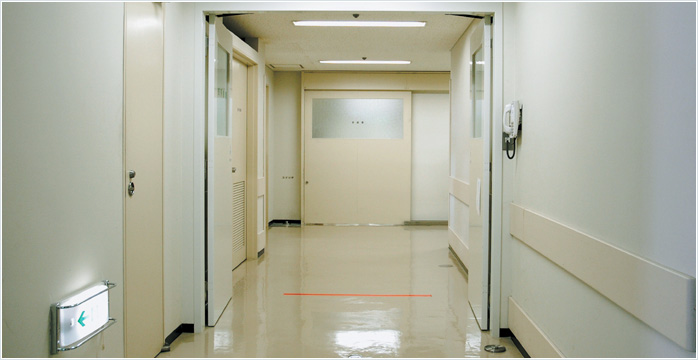

  • Swing Door Fully Open(Exterior)

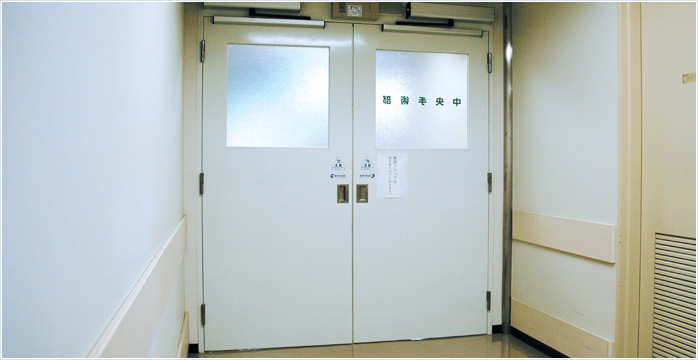

  • Swing Door Fully Closed(Interior)

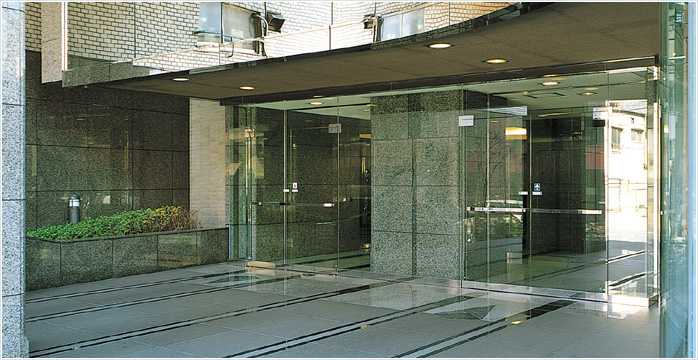

  • Swing Door Floor-Embedded

Application

Ideal
Recommended

Available in both push and pull swing styles


Mounted externally to the transom, this engine uses a DC motor and comes with a number of configurable easy-to-use features



HOG-900

HOH-1000

Installation Style Mounted Externally to Transom Mounted Externally to Transom Mounted Externally to Transom Mounted Externally to Transom
Style 90°Single Swing 90°Single Swing
Adapted Door Mass Less than 75kg x 1 Less than 75kg x 1
Adapted Door Width 700-900mm 700-1,000mm
Travel Time 35 - 40゜/s 35 - 45゜/s
Open Timer 0.5 - 4s 0 - 180s
Motor Type Induction Motor DC Brushed Motor
Transmission System Push Arm, Slide Arm Slide Arm
Controller 900T YCB-HOH
Operating Temp./Humidity -20 - 50℃ <75% (no condensation) -20 - 50℃ <75% (no condensation)
Power Requirements AC100V ±10% 5A 50/60Hz AC100V ±10% 5A 50/60Hz
Power Consumption Approx. 200Wh / 1000 open/close cycles Approx. 80Wh / 1000 open/close cycles


700-900mm
700-1,000mm

Swing Door - Download Schematics

  • HOH-1000

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.

Perfect for situations requiring a closed door at all times. Door is opened electrically and closed via door closer

This swing door engine is designed to be built-in. Fits beautifully and operates quietly

HOG-1100

HB-1100

Installation Style Mounted Externally to Transom Floor Embedded
Style 90°Single Swing    90°Single Swing
Adapted Door Mass Less than 75kg x 1 Less than 75kg x 1
Adapted Door Width 700-1,000mm 700-1,100mm
Travel Time 35-38゜/s 35-40゜/s
Open Timer 0.5-4s 0.5-4s
Motor Type Induction Motor Series Motor
Transmission System Open: Electric, Close: Door Closer Shaft Drive
Controller Integrated YCB-5S
Operating Temp./Humidity -20 - 50℃ <75% (no condensation) -20 - 50℃ <75% (no condensation)
Power Requirements AC100V ±10% 5A 50/60Hz AC100V ±10% 5A 50/60Hz
Power Consumption Approx. 140Wh / 1000 open/close cycles

Approx. 140Wh / 1000 open/close cycles



700 - 1,000mm
700 - 1,100mm

Swing Door – Schematic Download

  • HB-1100

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.
