Slide / Swing Type

  • Slide / Swing Type

  • Slide / Swing Type

  • Slide / Swing Type

Application

Ideal
Recommended

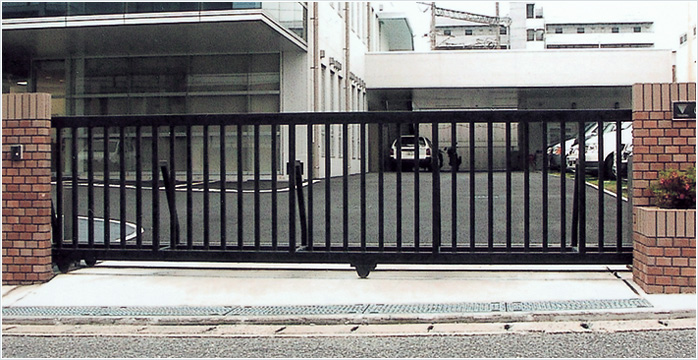

Perfect for automating large gates at factories and car parks.

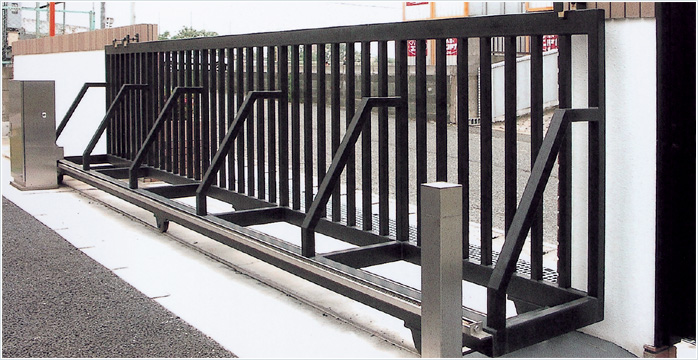

These automatic slide gates utilize chain drives with a safety-focused design.

GSL-400

GSL-600

Style Slide Slide
Transmission System Belt or Chain Belt or Chain
Power Requirements AC100V 5A 50/60Hz AC100V 5A 50/60Hz
Adapted Door
(per pane)
DW 4,000mm 8,000mm
Mass 400kg 600kg
Operational Circuit Open / Close / Stop System or One-Cycle System Open / Close / Stop System or One-Cycle System
Travel Time 300mm/s (Adjustable) 200mm/s (Adjustable)

  * Heavy slide engines supporting more than one ton also available.

Slide / Swing Types – Schematic Download

  • GSL-400/600

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.

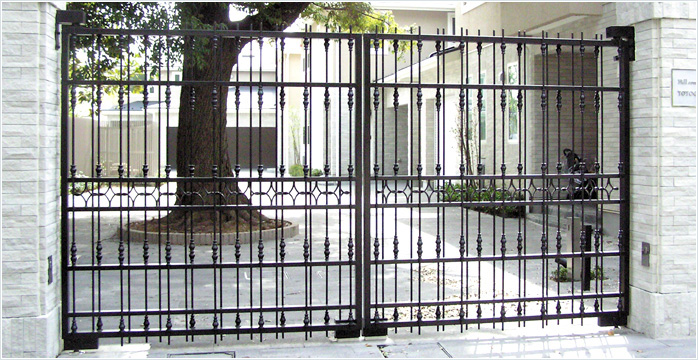

Ideal for automating gates for residences and various facilities.

These superior and safe swing gates have their engines buried underground, ensuring a large opening width, while deceleration and control units enable smooth opening and closing operation.

GSW-1000

GSW-2000

Style Swing Swing
Transmission System Shaft or Arm Shaft or Arm
Power Requirements AC100V 5A 50/60Hz AC100V 5A 50/60Hz
Adapted Door
(per pane)
DW 1,000mm 2,000mm
Mass 100kg 180kg
Operational Circuit Open / Close / Stop System or One-Cycle System Open / Close / Stop System or One-Cycle System
Travel Time 30゜/s (Adjustable) 15゜/s (Adjustable)

  * Above-ground engine installation also available.
* Two engines required for dual swing operation.

Slide / Swing Types – Schematic Download

  • GSW-1000/2000

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.
