Automatic door equipment designed for aluminum fire-resistance shop fronts made by a variety of manufacturers.

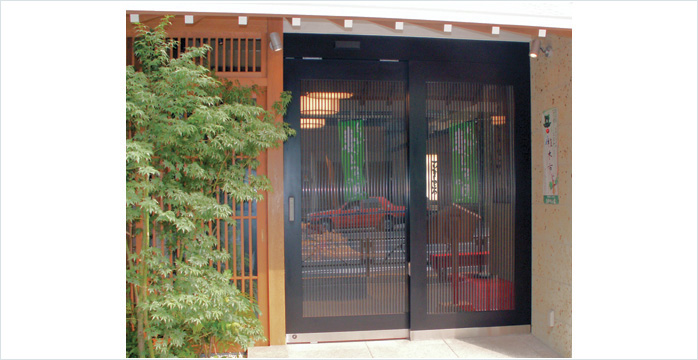

Aluminum Automatic Doors for Fire Protection Equipment （EB-9108）
Application
| Ideal |
|
| Recommended |
|
- - Necessary Locations For Fire Doors -
- In fire or semi-fire zones, the installation of fire doors is mandated in building sections prone to the spread of fire.
- - Sections Prone To Fire Spread -
-
* From the center of roads
-
* From land boundaries
-
* From center lines between buildings (when on shared land)
- ↓
Sections below 3m (first floor) or 5m (second floor and above)
A Certified Compliant Product certificate issued by the Curtainwall Fire Window’s Association will be affixed to all compliant doors.
- Specifications -
|
Single Slide |
Dual Slide |
|||
|---|---|---|---|---|
| Model | SOV-60・70・100KMF | SOV-100・150・160KMF | ||
| Power Transmission / Suspension / Control Units | Units meeting fire door specification | Units meeting fire door specification | ||
| Sash Maximum Opening Dimensions | Less than W1.2m / H2.4m | Less than W2.4m / H2.4m |
||
| Sash Maximum Frame Dimensions | Less than W3.6m | Less than W4.8m | ||
* A single door is specified to have an area no larger than 2.4m2.
* Maximum area excluding transom / transom window is specified to be no greater than 9.6m2.
