Lightweight Sliding Doors

A compact automatic door suited to typical aluminum shop-front designs (70 or 100mm depths).
Models directly attached or designed for embedding in partitions are also available.

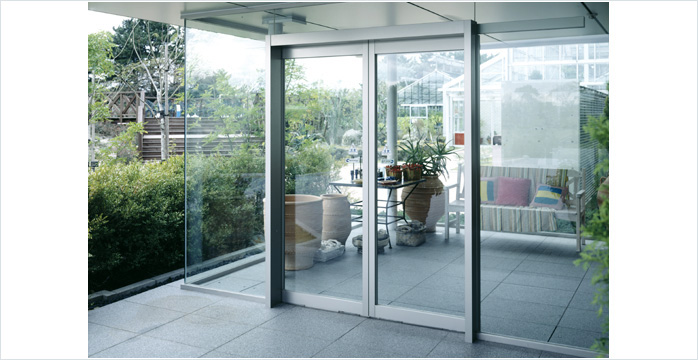

  • Lightweight Sliding Door

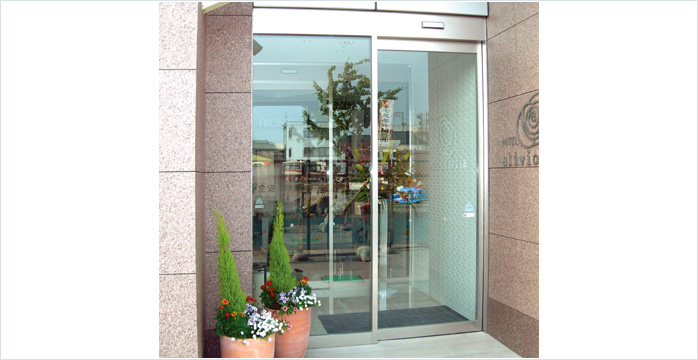

  • Lightweight Sliding Door

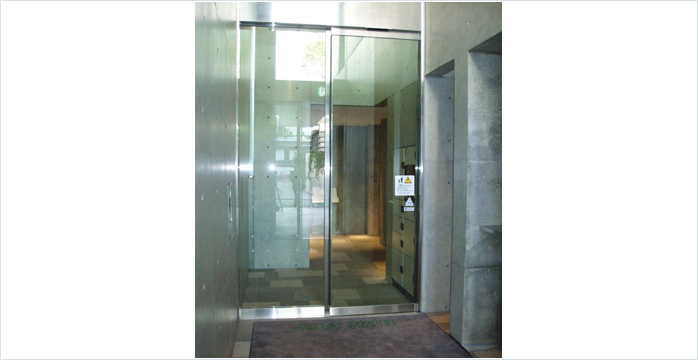

  • Lightweight Sliding Door

Application

Recommended

Lightweight door engine for embedding in 70mm depth aluminum shopfronts

Engine for slim partitions

SOT-T60KNB

SOT-P60KNB

Configuration T6 Plate Set (70mm Depth)

P2/PD Plate Set (Partition Embedded / Directly Mounted)

Style Single Slide Dual Slide Single Slide Dual Slide
Adapted Door Mass 60kg x 1 (T6 Hanger) 30kg~2 60kg~1 30kg~2
Door Stroke 450 - 1,250mm 450 - 1,250mm
Travel Time 100 - 500mm/s 100 - 450mm/s
Open Timer 0.3 - 9s 0.3 - 9s
Motor Type DC Brushless Motor DC Brushless Motor
Transmission System Timing Belt Timing Belt
Controller YCB-DCR YCB-DCR
Operating Temp./Humidity -20 - 50 <75% (no condensation) -20 - 50 <75% (no condensation)
Power Requirements AC100V }10 5A 50/60Hz AC100V }10 5A 50/60Hz
Power Consumption Approx. 120Wh / 1000 open/close cycles

Approx. 95Wh / 1000 open/close cycles



(Door Stroke) 450 – 1,250mm

(Door Stroke) 450 – 1,250mm

Lightweight Sliding Doors Download Schematics

  • SOT-T60KNB
  • SOT-P60KNB (wooden frame fitting, aluminum / wooden cover)
  • SOT-P60KNB (thin partition fitting)

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.

Lightweight door engine employing a DC brushless
motor excelling in power and low noise

Lightweight door engine realizing new levels of compactness and power saving thanks to its high power motor



SOV-70KLCM

SOT-80KNB

Configuration M3/D3 Plate Set / Separate

M3/D3 Plate Set / Separate

Style Single Slide Dual Slide Single Slide Dual Slide
Adapted Door Mass 70kg~1 35kg~2

80kg x 1 (Standard RS Hanger)

40kg~2
Door Stroke 450 - 1,250mm 450 - 1,250mm
Travel Time 100 - 500mm/s 230 - 470mm/s
Open Timer 0.3 - 9s 0 - 3s
Motor Type DC Brushless Motor DC Brushless Motor
Transmission System V Belt / Timing Belt Timing Belt
Controller YCB-DCR YCB-RCC
Operating Temp./Humidity -20 – 50   <75% (no condensation)

-20 – 50   <75% (no condensation)

Power Requirements AC100V }10 5A 50/60Hz AC100V }10 5A 50/60Hz
Power Consumption Approx. 87Wh / 1000 open/close cycles

Approx. 32Wh / 1000 open/close cycles



(Door Stroke) 450 – 1,250mm

(Door Stroke) 450 – 1,250mm
