Revolving Doors

An automatic revolving door with emphasis on safety.

  • Revolving Door

  • Revolving Door

Application

Ideal
Recommended

In the event a user becomes trapped, the fixed door can be opened and the revolving door stops.

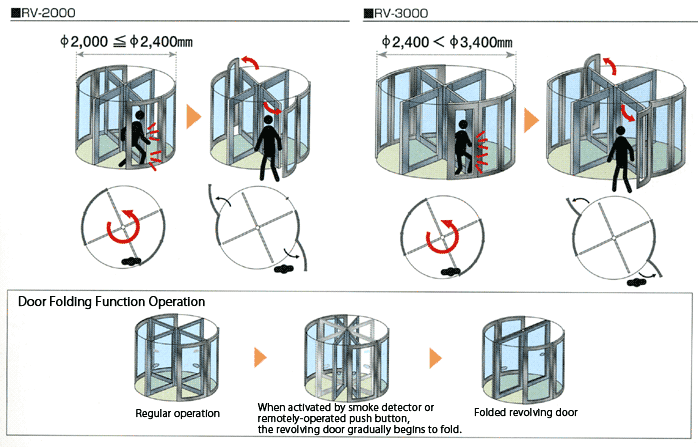

This series of revolving door maintains high air conditioning, soundproofing and energy saving operation thanks to its design that always keeps outside air from intruding inside. In the event a user becomes trapped within the door, the outer fixed door opens and the revolving door stops. In heavy traffic or emergency situations, the revolving door can be folded to enable a larger passageway.

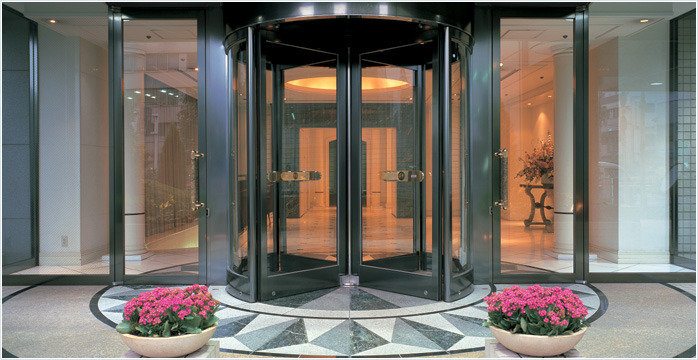

RV-2000

Diameter Φ2,000≦Φ2,400mm
Height 2,200-2,700mm
Power Single Phase AC100V 10A
Glass Door: 8mm Reinforced Glass
Door Vane Specification Door Panels: 4
・Foldable
Linked to Smoke Detector in Emergencies or Manual Signal (Non-Voltage A Contact Continuous Signal)
・Fixed
Fixed Section Specifications Movable Fixed Section
Rotation Speed Door Head Area Speed

Low Speed: Less than 350mm/s              High Speed: Less than 650mm/s

Rotation Direction Anti-Clockwise Rotation
Start-up Sensor   Transom-Fixed Start-up Sensor (exterior/interior installation)
Auxiliary Sensor   Door Vane Stile or Under-Stile Tape Switch
Door Vane Upper-Stile Sensor
Transom (Header) Bottom Sensor
(Middle Mullion Tape Switch)
Auxiliary Unit

Low-Speed Rotation Button *Switch installed in middle mullion (exterior/interior)

Emergency Unit

Emergency Stop Button *Switch installed in middle mullion (exterior/interior)


  Φ2,000≦Φ2,400mm

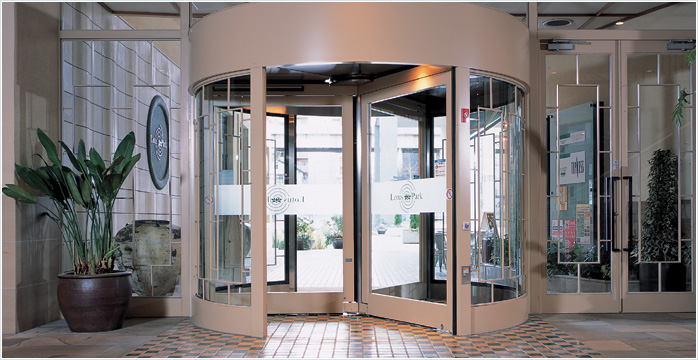

RV-3000

Diameter Φ2,400<Φ3,400mm
Height 2,200-2,700mm
Power Single Phase AC100V 10A
Glass Door: 8mm Reinforced Glass
Door Vane Specification Door Panels: 4
・Foldable
Linked to Smoke Detector in Emergencies or Manual Signal (Non-Voltage A Contact Continuous Signal)
・Fixed
Fixed Section Specifications Movable Fixed Section
Rotation Speed Door Head Area Speed
Low Speed: Less than 350mm/s High Speed: Less than 650mm/s
Rotation Direction Anti-Clockwise Rotation
Start-up Sensor Transom-Fixed Start-up Sensor (exterior/interior installation)
Auxiliary Sensor Door Vane Stile or Under-Stile Tape Switch
Door Vane Upper-Stile Sensor
Transom (Header) Bottom Sensor
(Middle Mullion Tape Switch)
Auxiliary Unit

Low-Speed Rotation Button *Switch installed in middle mullion (exterior/interior)

Emergency Unit

Emergency Stop Button *Switch installed in middle mullion (exterior/interior)


  Φ2,400<Φ3,400mm

Revolving Doors Download Schematics

  • RV-2000/3000

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.
