Folding Door / Folding Door Unit

Automatic doors ideal for locations with little room to store the doors, such as corridor partitions and operating chamber anterooms.

  • Folding Door Fully Open

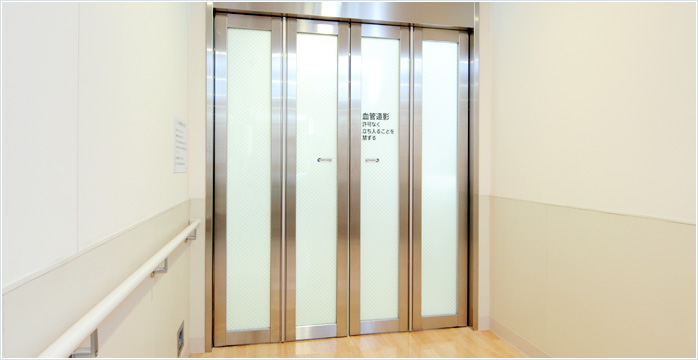

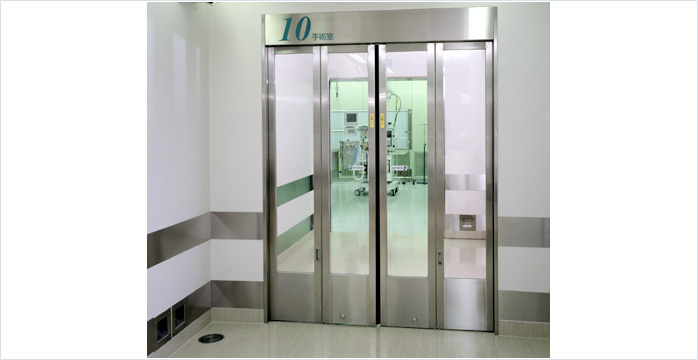

  • Folding Door Fully Closed

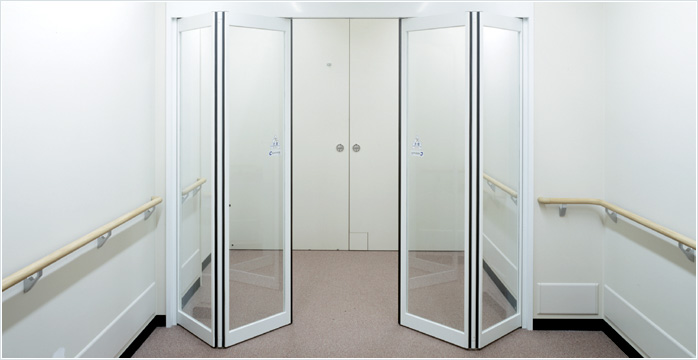

  • Folding Door Fully Closed

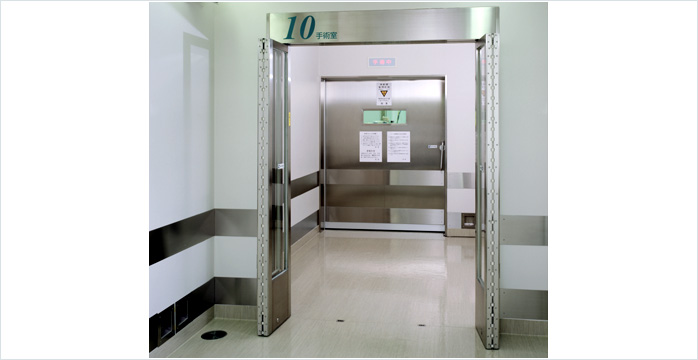

  • Folding Door Fully Open

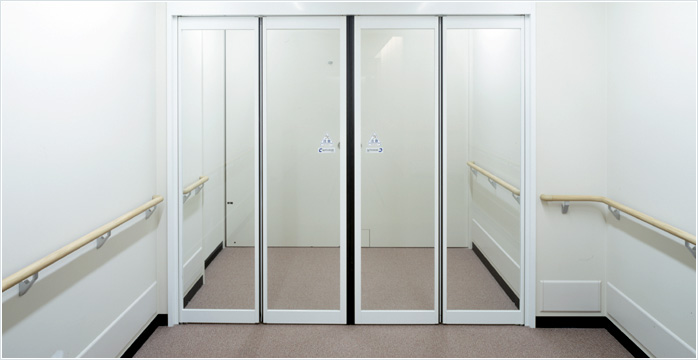

  • Folding Door Unit Slide Door - Closed

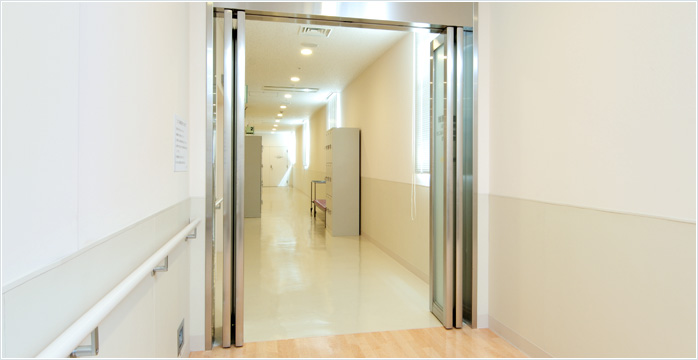

  • Folding Door Unit Slide Door - Operating

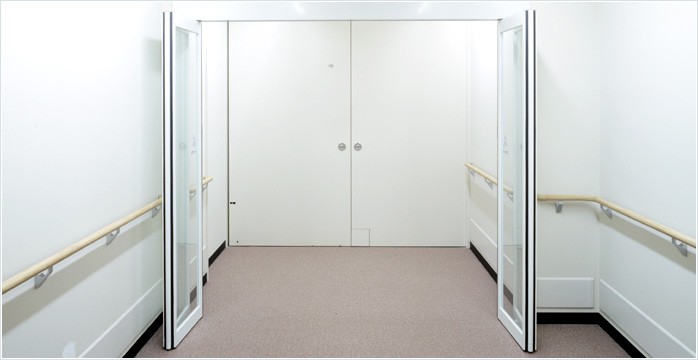

  • Folding Door Unit Slide Door - Fully Open

Application

Ideal
Recommended

Lightweight folding door engines (for steel / stainless steel doors)

HOH-SD

HOH-DD

Installation Style Transom Embedded Transom Embedded
Style Dual Pane Folding Quad Pane Folding
Adapted Door Mass Less than 40kg x 2 Less than 30kg x 4
Opening Width 1,000-1,400mm 1,400-2,200mm
Travel Time 35-40K/s 35-40K/s
Open Timer 0.5-180s 0.5-180s
Motor Type DC Brushed Motor DC Brushed Motor
Transmission System Shaft Drive / Toothed Belt Transmission

Shaft Drive / Chain Transmission

Controller YCB-HOH-FD YCB-HOH-FD
Operating Temp./Humidity -20 - 50Ž <75% (no condensation) -20 - 50Ž <75% (no condensation)
Power Requirements AC100V }10“ 5A 50/60Hz AC100V }10“ 5A 50/60Hz
Power Consumption Approx. 80Wh / 1000 open/close cycles Approx. 80Wh / 1000 open/close cycles


1,000-1,400mm
1,400-2,200mm

Folding Door - Download Schematics

  • HOH-SD/DD

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.

Mid-weight folding door engines adaptable to order-made sashes

HB-SD

HB-DD

Installation Style Transom Embedded Transom Embedded
Style Dual Pane Folding Quad Pane Folding
Adapted Door Mass Less than 80kg x 2 Less than 50kg x 4
Adapted Door Mass 850-1,500mm 1,250-2,200mm
Travel Time 30K/s 30K/s
Open Timer 0.3-9s 0.3-9s
Motor Type DC Brushless Motor DC Brushless Motor
Transmission System Shaft Drive / Chain Transmission Shaft Drive / Chain Transmission
Controller HOH-DRH-1SW HOH-DRH-1SW
Operating Temp./Humidity -20 - 50Ž <75% (no condensation) -20 - 50Ž <75% (no condensation)
Power Requirements AC100V }10“ 5A 50/60Hz AC100V }10“ 5A 50/60Hz
Power Consumption Approx. 60Wh / 1000 open/close cycles Approx. 60Wh / 1000 open/close cycles


850-1,500mm
1,250-2,200mm

Folding Door Unit - Download Schematics

  • HB-SD/DD

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.

Folding Door Unit
This automatic folding door unit can be embedded in 100mm-deep aluminum fronts.

1.Space-saving compact fit
This compact model fits into aluminum fronts (100mm depth x 170mm width).
It also doesnft require door pockets, reducing dead space and ensuring a wide opening.
2. Safe design taking users into account.
Door travel speed can be customized according to user preferences.
Paired with our original Alclasse Door, the most beautiful fit is achieved.
3.Versatile electronic control
The inbuilt microprocessor allows for fine tuning of open time, auxiliary sensor disable angle, operation complete output and more.
4.Smooth and reliable operation
A DC brushed motor provides stable torque and reliable open/close operation
- Main Usage Areas -
Corridor partitions, hospital operating chamber anterooms, kitchen doorways


These units integrate our original aluminum-framed Alclasse Door.

HOH-CAL-S

HOH-CAL-D

Installation Style Transom Embedded Transom Embedded
Style Dual Pane Folding Quad Pane Folding
Adapted Door Mass Less than 25kg x 2 Less than 25kg x 4
Opening Width 850-1,200mm 1,200-2,000mm
Travel Time 35-40K/s 35-40K/s
Open Timer 0.5-180s 0.5-180s
Motor Type DC Brushed Motor DC Brushed Motor
Transmission System Shaft Drive / Toothed Belt Transmission Shaft Drive / Chain Transmission
Controller YCB-HOH-FD YCB-HOH-FD
Operating Temp./Humidity -20 - 50Ž <75% (no condensation) -20 - 50Ž <75% (no condensation)
Power Requirements AC100V }10“ 5A 50/60Hz AC100V }10“ 5A 50/60Hz
Power Consumption Approx. 80Wh / 1000 open/close cycles

Approx. 80Wh / 1000 open/close cycles



850-1,200mm
1,200-2,000mm

Folding Door – Download Schematics

  • HOH-CAL-S/D

* Schematic data is prepared in accordance with standard specifications. It does not reference the locations depicted in photos.
